Vacuum Drying Oven

Vacuum Drying Oven(DP610P)

Item Code：212160

Model：DP610P

Power Source：AC220V 16A

Origin：Japan

Product Summary

Vacuum pump linkage automatic sequence type which release the manual operation of a vacuum pump and a leak valve.

Features

Don't have to worry about the incorrect operation, reverse flow of vacuum pump oil when power off.

Automatic sequence operation of vacuum pump linkage is possible.

Saving space, high quality controller, individual overheating prevention and many others function.

Prevent the reverse flow of vacuum pump oil when power off.

There is no exhaust loss because of 1 inch solenoid vacuum valve.

Automatic/manual switch is set up.

Specifications

Item Code

212160

Model

DP610P

Method

Vacuum drying by decompressed chamber direct heating

Operating pressure range

101 to 0.1 kPa (760 to 1 Torr) at absolute pressure

Max. temp. reaching time

Approx. 100 min.

Interior/Exterior material

Stainless steel/Cold rolled steel plate with baked-on melamine resin finish

Heater

Mica heater, 3.15 kW

Observation window

Tempered glass and polycarbonate resin plate

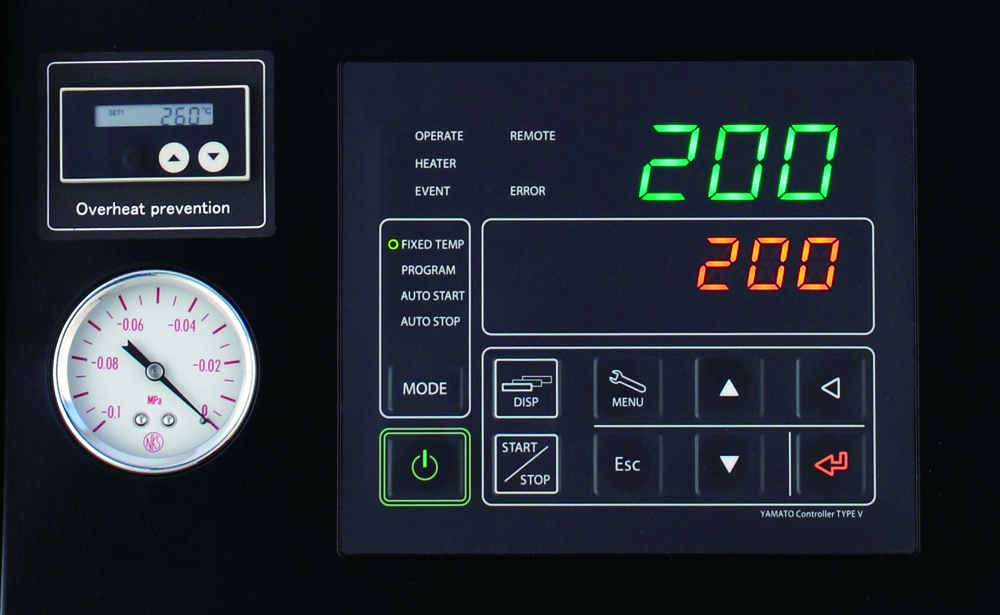

Vacuum gauge

Bourdon tube type, 0 to 0.1 MPa (Gauge pressure)

Temp. control method

PID control by microprocessor

Additional functions

Calendar timer (max. 24 Hrs.), Integration time (max 65535 Hrs.), Time display, calibration offset, power discharge, CO2 discharge, heater consumption display, power failure stagnation mode, user configuration information

Heater circuit control

Triac zero-cross control

Operating temperature range

40~200℃

Temp. adjustment accuracy

± 1.5°C (at 200°C)

Operation functions

Fixed temperature operation, auto-start operation, auto-stop operation, program operation ( 99 steps, 99 patterns repeat operation)

Temp. sensor

K-thermocouple (double sensor)

Safety countermeasures

Self diagnosis functions(Sensor, Heater, Triac, automatic overheating prevention), Independent overheating prevention, Key lock function, Electric leakage breaker

Shelf support step number/pitch

4 steps/140mm

Exhaust port / Purge port

NW25 flange / Rc 1/4

Accessories Shelf plate

Punched stainless steel, 2 pcs

Internal dimensions（W×D×H mm）

600×600×600mm

External dimensions（W×D×H mm）

820×819×1650mm

Internal capatity

216L
