Operating Temp. Range
-10~50℃
Temperature Adjustment Accuracy
±0.3℃(During continuous refrigeration for both upper and lower chamber)
Temperature Distribution Accoracy
±1.0℃(at 37℃ during continuous refrigeration for both upper and lower chamber)

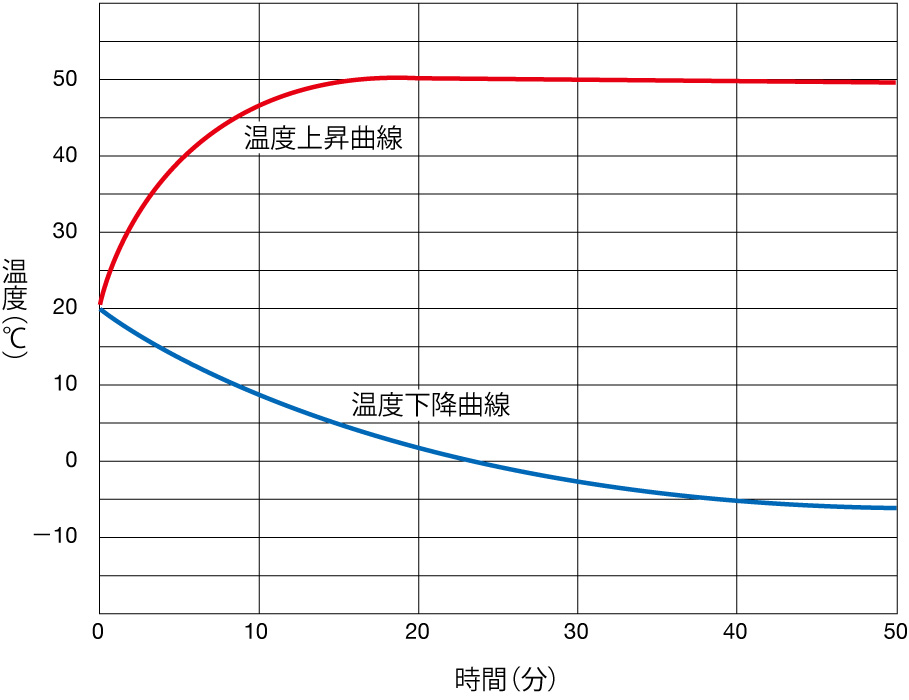

Time to reach the Max. Temp.
20~+50℃:Approx. 25min.
Time to reach the Lowest Temp.
20~-10℃:Approx. 45min.
Exterior
Chrome-free electronic galvanized plated steel plate chemical-proof baking finish

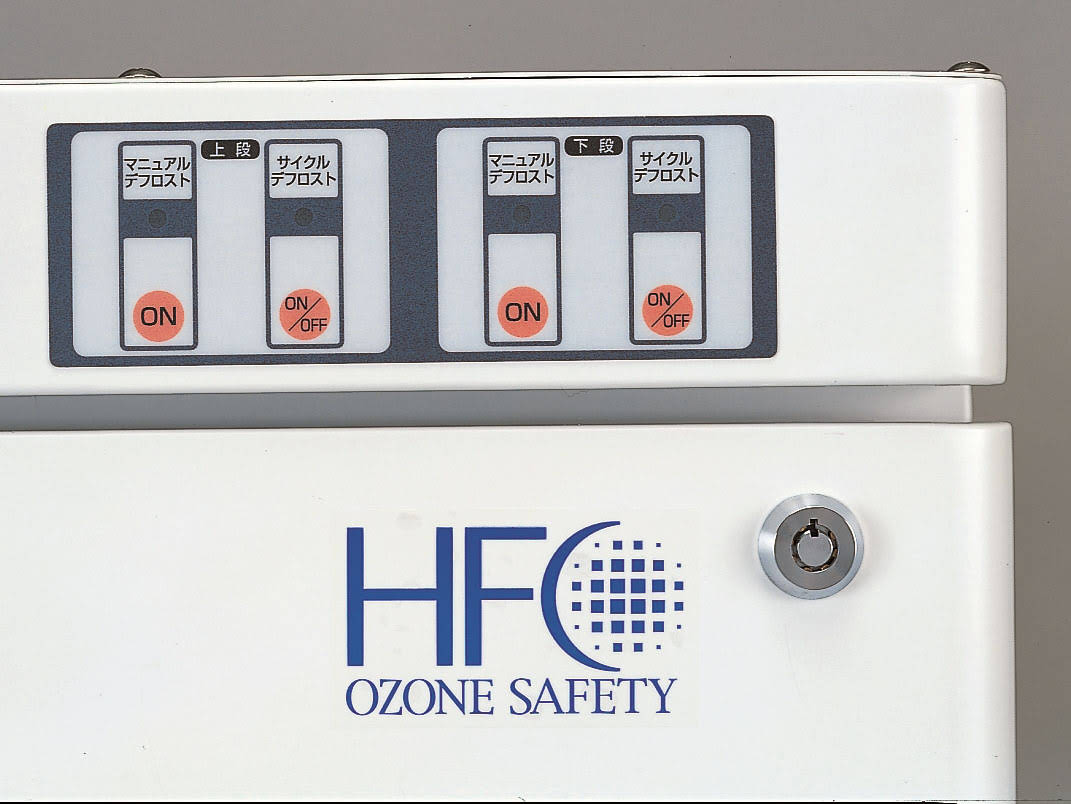

Defrost Operation
Manual defrost (Manual ON/ Auto OFF), Cycle Defrost
Sensor
Pt100Ω(Temperature controller), K-thermocouple(Overheat prevention device)
Cable Port
50mm ID(Right side from the front for upper and lower chamber)
Temperature Control
PID control
Temperature Setting
Digital setting method by ▲▼ key with the dedicated select key
Temperature Display
Setting temperature: Green LED digital display, Actual temperature: 4-digit red LED digital display
Timer
1min.~99hrs. 59min. or 100~999hrs. 50min.(Timer wait function)
Operation Function
Fixed, program(Max. 30 steps, 3 pattern)Auto start, Auto stop、クイックオートストップ
Additional Functions
Calibration off-set function, Blackout recovery function
Safety Funcitions
Self-diagnostic functions (Memory error, Abnormal temp. sensor, heater disconnection, SSR short circuit, Automatic overheat preventive function), Key lock, Over-current ELB, Overheat preventor
Shelf Loading Capacity
15kg / shelf
Shelf Step / Pitch
13 steps ×2 chambers / 30mm

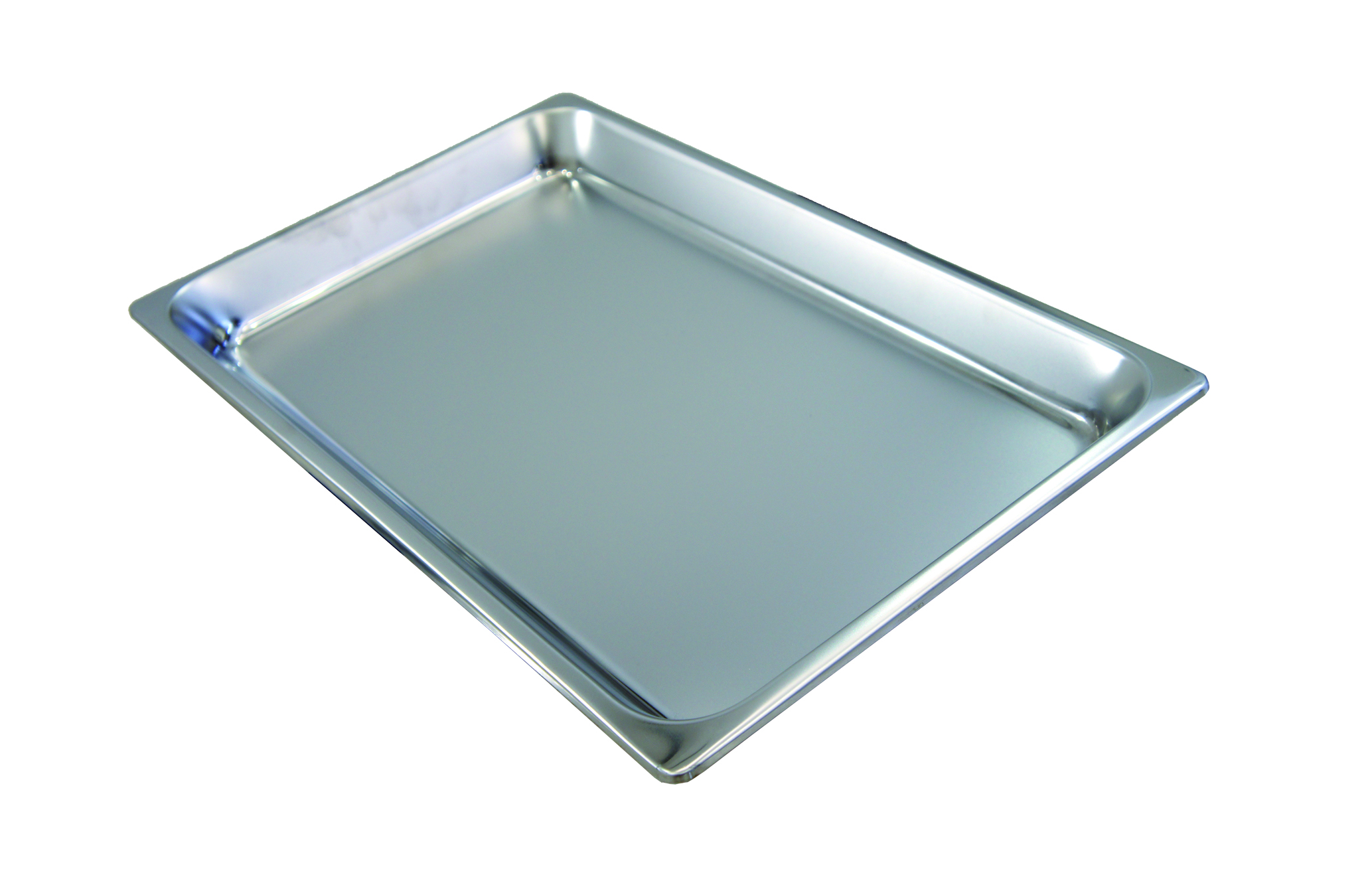

Shelf / Support
Stainless steel punching metal, 3 shelves x 2 chambers / 6pcs.× 2 chambers
Door Lock Key
2 pcs. / each chamber
Internal Dimensions(W×D×H mm)
600×477×500mm
External Dimensions(W×D×H mm)
710×645×1675mm
Internal Capacity
143L× 2 chambers
