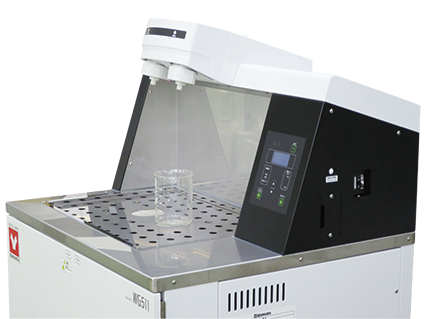

Water Purifier (Ion-exchange + Distillation, Large Capacity)

Water Purifier (Ion-exchange + Distillation, Large Capacity)(WG511)

Item Code：253137

Model：WG511

Power Source：AC220V 20A Single-phase with step-down transformer

Origin：Japan

Product Summary

High-capacity type to supply highly pure water with a single motion.

Features

The supplying water, Ion exchange water and Distilled water to the storage tank are automatically controled.

For production of large amounts of distilled water and deionized water.

Digital water quality display, Collection water with a single touch of button.

It is easy to replace the ion-exchange resin cartridge.

UV lamp for sterilization is available as the optional.

Specifications

Item Code

253137

Model

WG511

Water purifying method

Ion exchange→Distillation→Filtration

Sampled pure water method

One-touch coupler connecting resin hose / free hose connecting

Distilled water production

Left / right selection for connecting hose

Amount of distilled water collected

Approx. 1.0 to 2.0 L/min. (50Hz) 1.5 to 2.5 L/min. (60Hz)

Ion-exchanged water sampling amount

Approx. 5 L/hr.

Collection capacity setting range

1.0 - 2.0 L/min (50Hz) 1.5 - 205 L/min (60Hz) *it depends on the amount of water in the tank

Condenser

Approx. 1.4 L/min

Heater

0.1 - 85L quantitative water / Continuous production

Pretreatment cartridge

Hard glass

Ion exchange resin cartridge

Ceramic heater, 2 pcs.

Distilled water / ionized water final filtration

0.1μm diameter hollow fiber + Activated carbon

leak detection

SPC-10 (approx. 10L of resin)

Distilled water storage tank

0.1μｍ×2 membrane filter

Distilled water UV sterilization

Forced shutdown of solenoid valve by water leakage sensor

Water sampling sink

100L polyethylene tank

Multipurpose distilled water sampling port

Standard

Standard ambient temperature range

0.10MPa to 0.50MPa

External dimensions（W×D×H mm）

800×685×1510mm

Power Source

AC220V 20A Single-phase with step-down transformer

Weight

130kg

Catalog

WG511

Optional Items

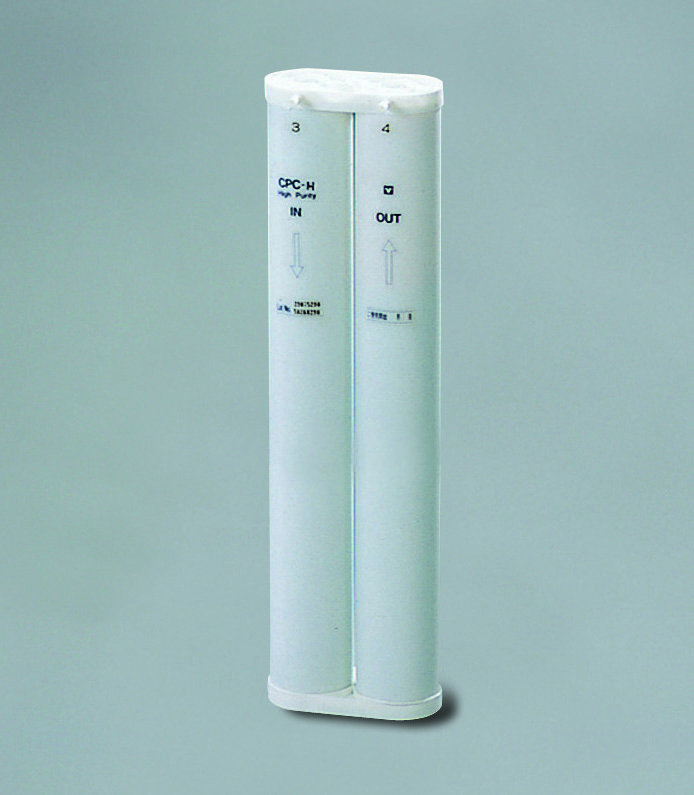

High purity cartridge(CPC-H)

Sampling hose connection unit(OWF10)

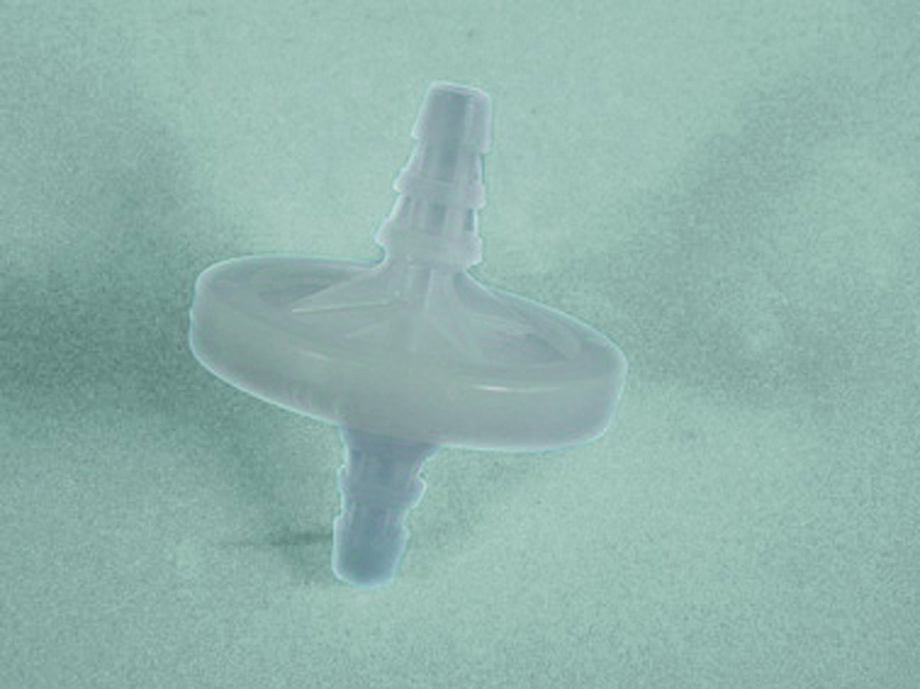

Membrane filter(MFRL730)

Water supply port unit(OWH10)

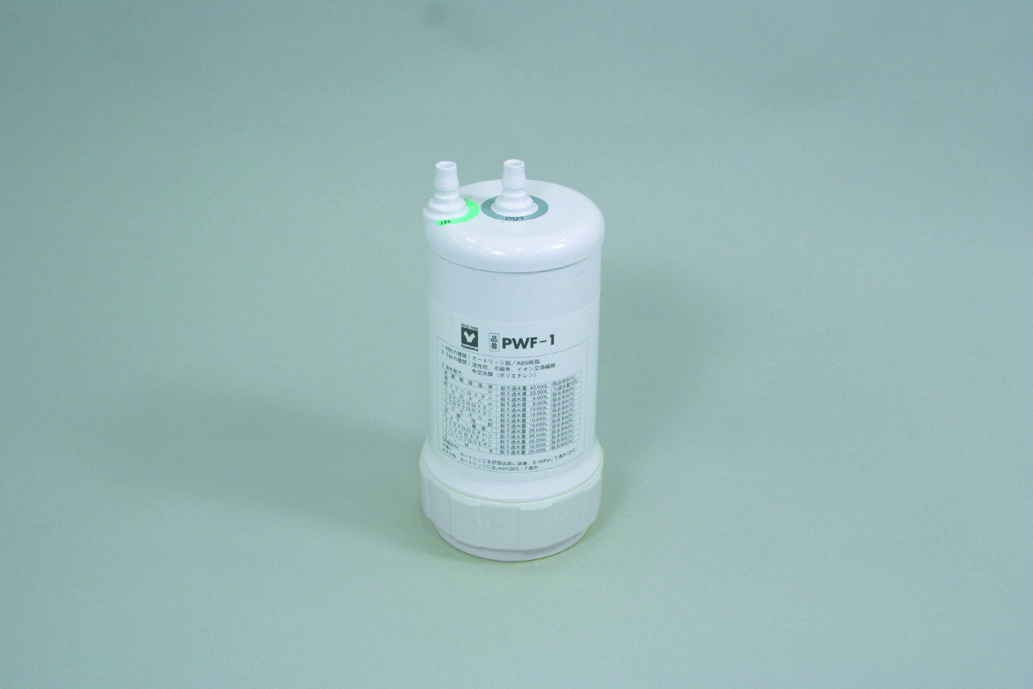

Pre-treatment cartridge(PWF-1)

Connection unit G(GWL100)

Raw water pressure reduction valve(OWG48)

UV sterilizing lamp(OWG28)

Drain water trap(OWI21)

UV sterilizing lamp(OWG66)

High Purity Cartridge (CPC-H) Connection Unit(OWG62)

External Alarm Output(OWG64)

Ion exchanger(SPC-10)
