Operating temperature range
Room temp.+15~300℃
GB standard Temp. fluctuation
±0.5℃ (at 300℃)
Temp. uniformity
±1.5%(at 300℃))
Max. temp. reaching time
≤120 min.
Interior material
Stainless steel plate
Exterior material
Cold rolled steel plate with chemical proofing coating
Insulating material
Rock wool+centrifugal glass wool
Heater
Stainless steel heating pipe 1.3KM*2
Fan blade/motor
Centrifugal fan blade, 30W motor × 1
Cable port I.D.
33mm × 1, located on the right
Exhaust vent I.D.
33 mm × 2, located at the back
Temp. control method
3-stage PID
Temperature setting method
7-inch color touch screen
Temperature display method
7-inch color touch screen
Operation functions
Fixed temp. operation, program operation, timing operation
Additional functions
Temperature curve, temperature history curve, alarm records, alarm history records, operation log, data export function, language switching (Chinese, Japanese, English), calibration function, power failure compensation function, screen brightness adjustment, three-level authorization function
Safety device
Self-diagnostic circuit (temperature sensor anomaly, heater disconnection protection, automatic overheating preventer, SSR short-circuit), independent overheating preventer, overcurrent leakage protection, and heating and fan stops operating when door opens
Internal dimensions(W ×D× H mm)
600×500×500
External dimensions (W ×D× H mm)
760×740×1010

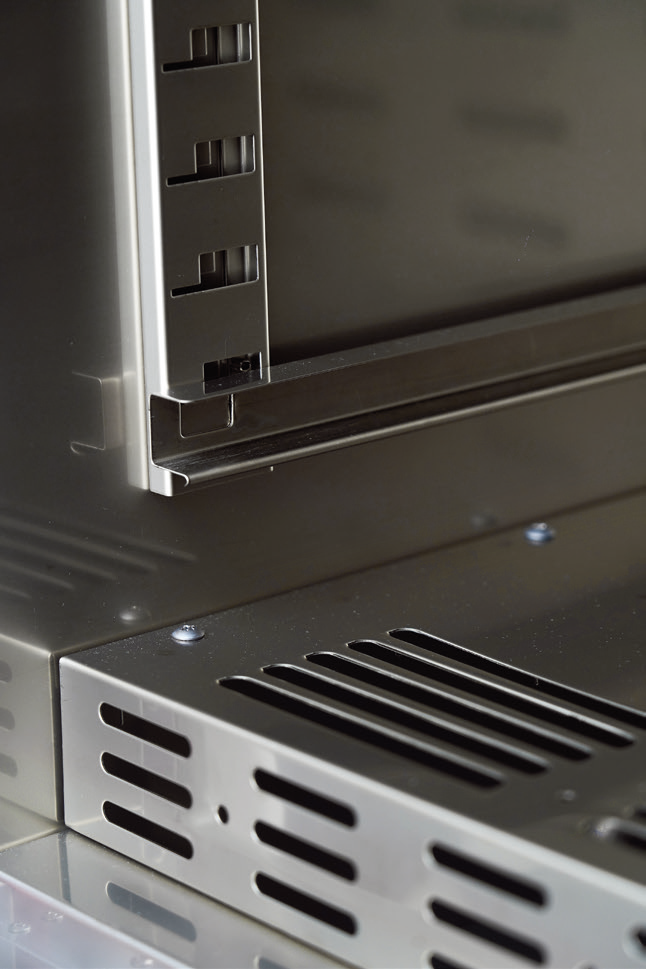

Shelf layers / shelf support spacing
13 layers
Accessories

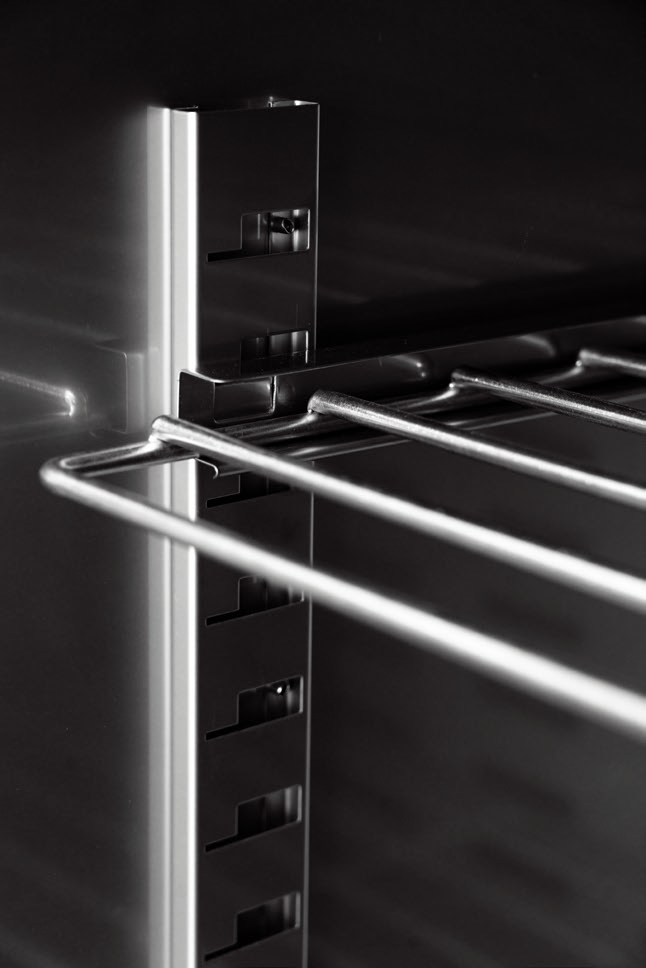

Shelf Stainless punching mesh plate 2 pieces, Supports 4PCS
