Labocube Closed Cooling Circulators with Build-in Solvent Collection device

Labocube Closed Cooling Circulators with Build-in Solvent Collection device(CF321P)

Item Code：221563

Model：CF321P

Power Source：AC115V/AC220V Single-phase with step down transformer

Origin：Japan

Product Summary

Features

Specifications

Item Code

221563

Model

CF321P

Circulation type

Externally closed circulation

Operating temp. range

-20℃～ Room Temperature

Cooling capacity

440W（344Kcal/h）at 10℃、350W（300Kcal/h）at 0℃、285W（245Kcal/h）at -10℃

Temp. control

Refrigerator ON/OFF control

Temp. sensor

T-Thermocouple

Temp. setting / Display

Digital setting / LED display

Refrigerator

Air cooling, 350W

Refrigerant

R404A

Circulation pump

Magnet pump 34/35W

Circulation capacity (50/60Hz), Max. flow rate, Pump max. flow rate

9.1/8.9L/min（50/60Hz）

Circulation capacity (50/60Hz), Max. lift, Pump max. lift

4.8/5.5m（50/60Hz）

Cooling Coil

Nickel plated copper

External circulation nozzle

O.D. 10.5mm for in and out

Safety device

Electric leakage breaker, Refrigerator over load relay, Pump thermal protector, Refrigerator-protection delay timer

Other functions

Drain, over flow, Dust prevention filter, Calibration offset, Key lock, Power failure compensation

Water bath material

Stainless steel

Water bath capacity

Approx. 4L (Liquid amount 3L)

Accessories

Drain hose, upper lid, solvent recovery bottle, overflow hose, 1.5m x2 circulantion hose, x2 wire clamps, RE connectio cable

External dimensions（W×D×H mm）

500×400×600mm

Power Source

AC115V/AC220V Single-phase with step down transformer

Weight

52kg

Catalog

Cooling Water Circulator (Externally Closed Circulation, Air Cooling)

Optional Items

L shape circulation nozzle φ16mm R3/8(OCL50)

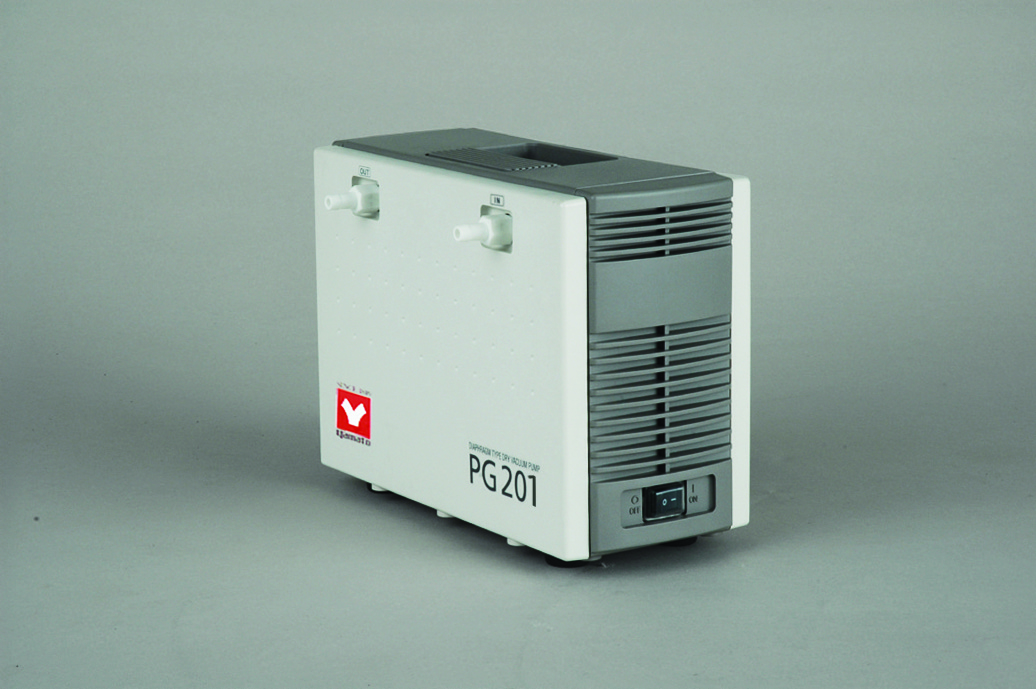

Vacuum pump PG201(PG-201)

Communication cable for vacuum pump delay timer(OCF28)

Circulation insulation hose(CF, CFI Series)

Straight circulation nozzle φ 10.5 R 3/8(OCL10)

Straight circulation nozzle φ16 R3 / 8(OCL20)

Vacuum hose, 　6mm I.D. x 15mm O.D. x 5m (1pc)

L shape circulation nozzle φ10.5mm R3/8(OCL30)

L shape circulation nozzle φ13mm R3/8(OCL40)
