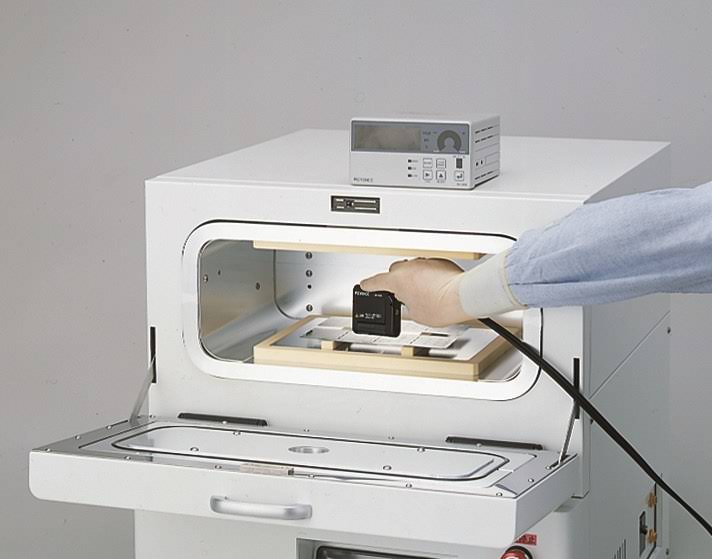

Plasma Cleaner (Parallel Electrode)

Plasma Cleaner (Parallel Electrode)(PDC200)

Item Code：328210

Model：PDC200

Power Source：Single phase AC100V 10A

Origin：Japan

Product Summary

Plasma Surface Treatment Device

Features

Simple and compact plasma surface treatment device

RIE mode (DP mode is optional)

Excellent electrode structure for plasma uniformity

Touch panel for easy operation

Equipped with 0 point stability vacuum manometer

Specifications

Item Code

328210

Model

PDC200

Plasma Mode

RIE（DP mode is optional）

Electrode Structure

Parallel flat stage

RF Power

MAX. 300W

Oscillation Frequency

13.56MHz　Quartz Oscillator

Display

LED touch panel

Chamber Dimensions

W400 × D250 × H150mm

Stage Size

W250 × D170mm

Chamber Material

Aluminium

Reaction Gas

2 systems（Ar, O2）

Purge Gas

N2 or Dry air

Reaction Gas Flow Control

Flow meter

Vacuum Pump

Not included (Recommend : 345L/min. or more)

Gas Inlet Port

Reaction Gas: 2 points, Purge Gas: 1 point

Internal dimensions（W×D×H mm）

400×250×150mm

External dimensions（W×D×H mm）

540×600×600mm

Power Source

Single phase AC100V 10A

Weight

100kg

Catalog

PDC200
