Vacuum Pumps, Compact

Vacuum Pumps, Compact(PQ30)

Item Code：242284

Model：PQ30

Standard Power Source：

Origin：Japan

Product Summary

Compact and light weight thanks to direct connection to the motor.

Features

Integrated check valve below the inlet port and pump internal atmospheric release mechanism for backflow prevention.

Magnet coupling produces low noise and results to longer lifetime of shaft seal.

Specifications

Item Code

242284

Model

PQ30

Oil amount (mL)

370mL

Oil type

R-2

Effective exhaust speed (50 Hz)

30L/min

Effective exhaust speed (60 Hz)

36l/min

Attainable vacuum (Pa)

0.67 Pa

Motor

Single phase,100-120V,100W,2P

Suction pipe diameter (mm)

O.D.15 x I.D. 11 mm

Operating atmospheric temp. range (deg.C)

7~40℃

External dimensions（W×D×H mm）

120×289×163mm

Power Source

100V 1.85A 60Hz：1.89A

Power Source (Modification)*

N/A (External transformer required)

Weight

9.3kg

Catalog

Vacuum Pumps, Compact

Optional Items

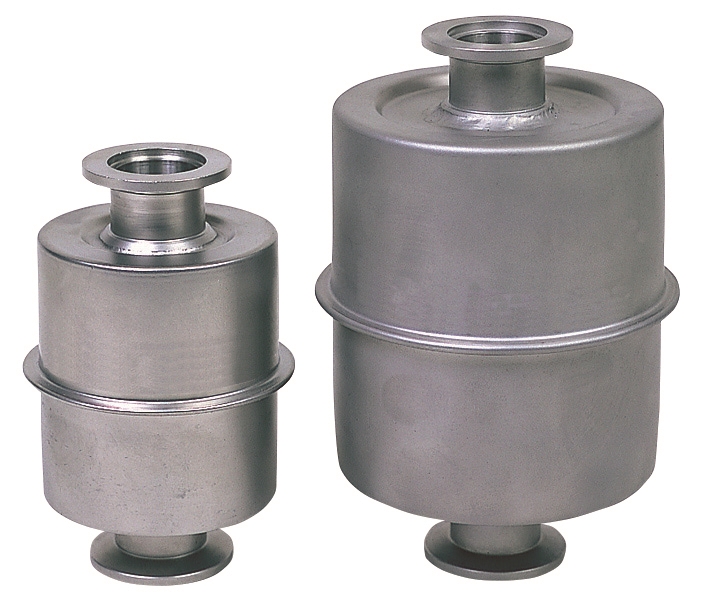

Forline Trap(OFI-050C)

Forline Trap(OFI-050V)

KF-25 exhaust pipe, KF-25 x G3/4(-)

Hose port exhaust pipe, O.D. φ15ｘG3/4(-)

Hose port exhaust pipe, O.D. φ18ｘG3/4(-)

Vacuum pumps oil (1L/can)(R-2)

Vacuum pumps oil (4L/can)(R-2)

Vacuum pumps oil (20L/can)(R-2)

Oil Mist Trap for Low level vacuum(OMT-050A)
