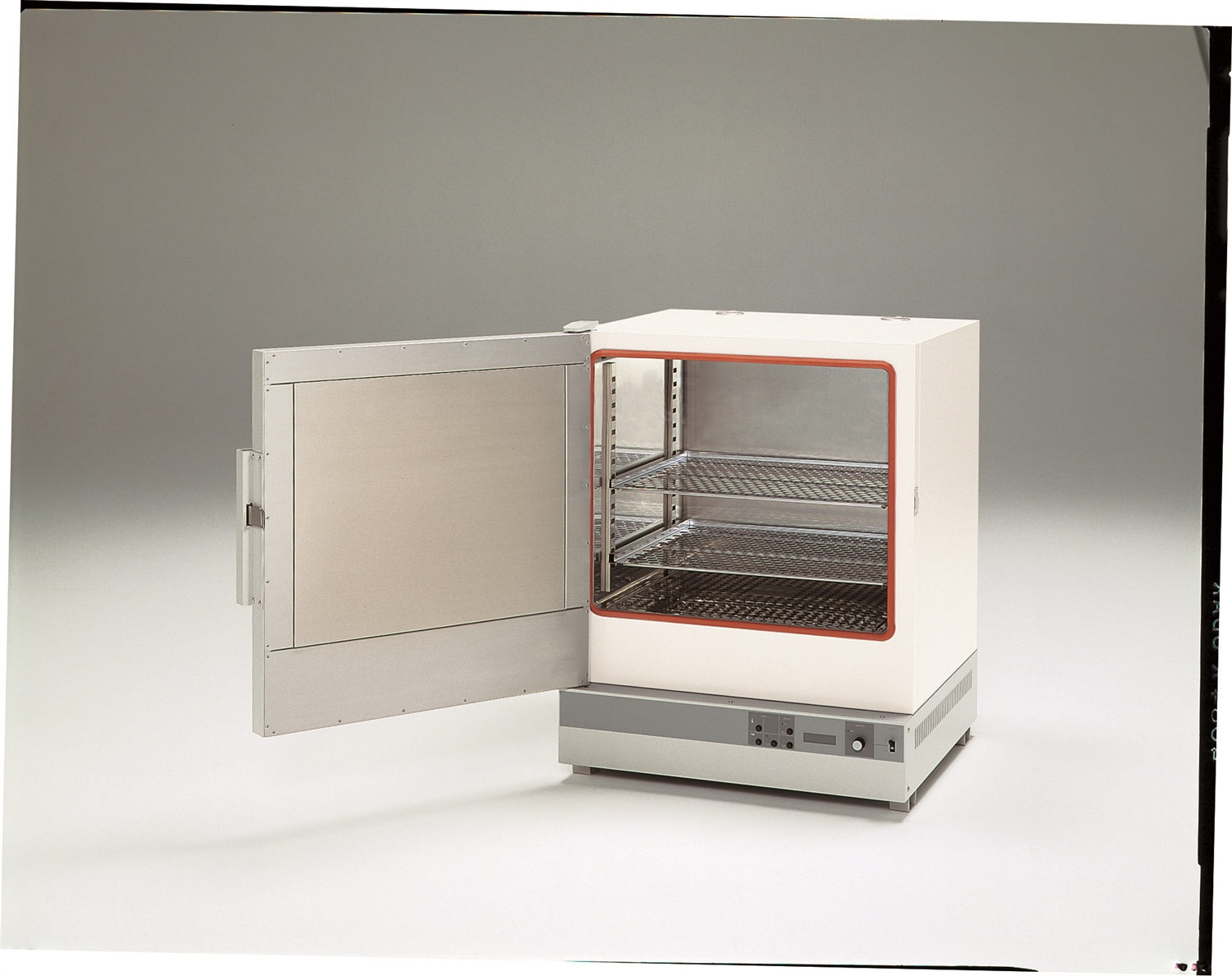

Dry Heat Sterilizer

Dry Heat Sterilizer(SI601)

Item Code：292228

Model：SI601

Power Source：AC115V/AC220V

Origin：Japan

Product Summary

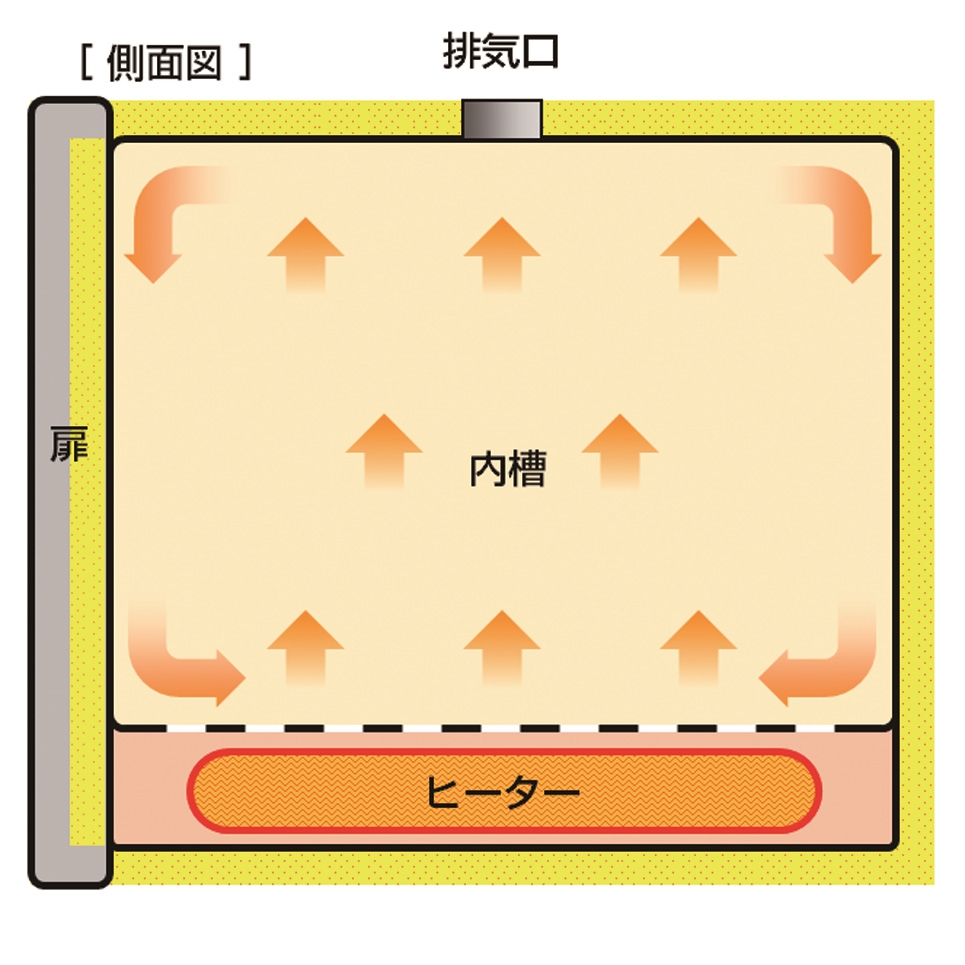

Natural convection hot air sterilizer withprogram function, easy to set

Features

Quick, safe and reliable sterilization function.

Easy operation, available for fixed temp., program, quick auto stop, auto stop and auto start operations.

Use special function menu keys and up/down keys to realize digital setting. with repeat function, 3 segments 30 steps program controller.

Use submenu keys to operate overheat protector, deviation correction and key locking.

Self-diagnosis circuit (abnormal temp. sensing, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, ELB to prevent overcurrent, key lock, etc.

Specifications

Item Code

292228

Model

SI601

Circulation method

Natural convection

Operating temp. range

Room temp. +5~260°C

Temp. adjustment accuracy

2°C (at 260°C)

Temp. distribution accuracy

20°C (at 260°C)

Max. temp. reaching time

Approx. 70min.

Interior / Exterior

Stainless steel plate / Cold rolled steel plate with chemical proofing coating

Insulating material

Glass fiber

Heater

Nichrome heating wire / 1.36kW

Air exhaust port

I.D. 30mm×2 (top)

Temp. control

PID control

Temp. setting

Use special function menu key and up/down key to set

Temp. display

Measured temp. display: Green 4-digit LED digital display,Setting temp. display: Red 4-digit LED digital display

Timer

1min-99 hr 59 min and 100 hr-999 hr 50 min (Attached with timing wait function)

Operation function

Fixed temp. operation, Auto start, Quick auto stop, Program operation

Program mode

Program operation 3 segments 30 steps (30 steps×1, 15 steps×2, 10 steps×3)

Additional function

Deviation correction, Key lock, Power outage compensation

Sensor

K thermocouple (Temp. controller and overheat protector)

Safety device

Self-diagnosis circuit (Abnormal temp. sensing, Heater disconnection, Auto overheat prevention, SSR short circuit),

Shelf plate with standard load

Approx. 15 kg/pc.

Shelf support step number / pitch

13 steps / 30mm

Shelf plate material

Stainless punching metal

Shelf plate / bracket

2pcs./4pcs.

Optional

Stand/ONS60 ,Stacking clamp/ODK84, Shelf plate (1 plate with 2 brackets)

Internal dimensions（W×D×H mm）

600×530×500mm

External dimensions（W×D×H mm）

700×640×877mm

Remarks(dimensions)

159L

Power Source

AC115V/AC220V

Weight

59kg

Catalog

Optional Items

Stainless punching metal shelf

Stand(ONS60)

Stacking support(ODK84)

External communication function(O281240)

Temperature output terminal(O281242)

External alarm terminal (O281243)

Time-up output terminal(O281244)

Individual overheat-prevention device(O281245)

External communication adapter
