Dry Heat Sterilizer

Dry Heat Sterilizer(SI402)

Item Code：292248

Model：SI402

Power Source：AC115/AC220V 50/60Hz, Single phase

Origin：Japan

Product Summary

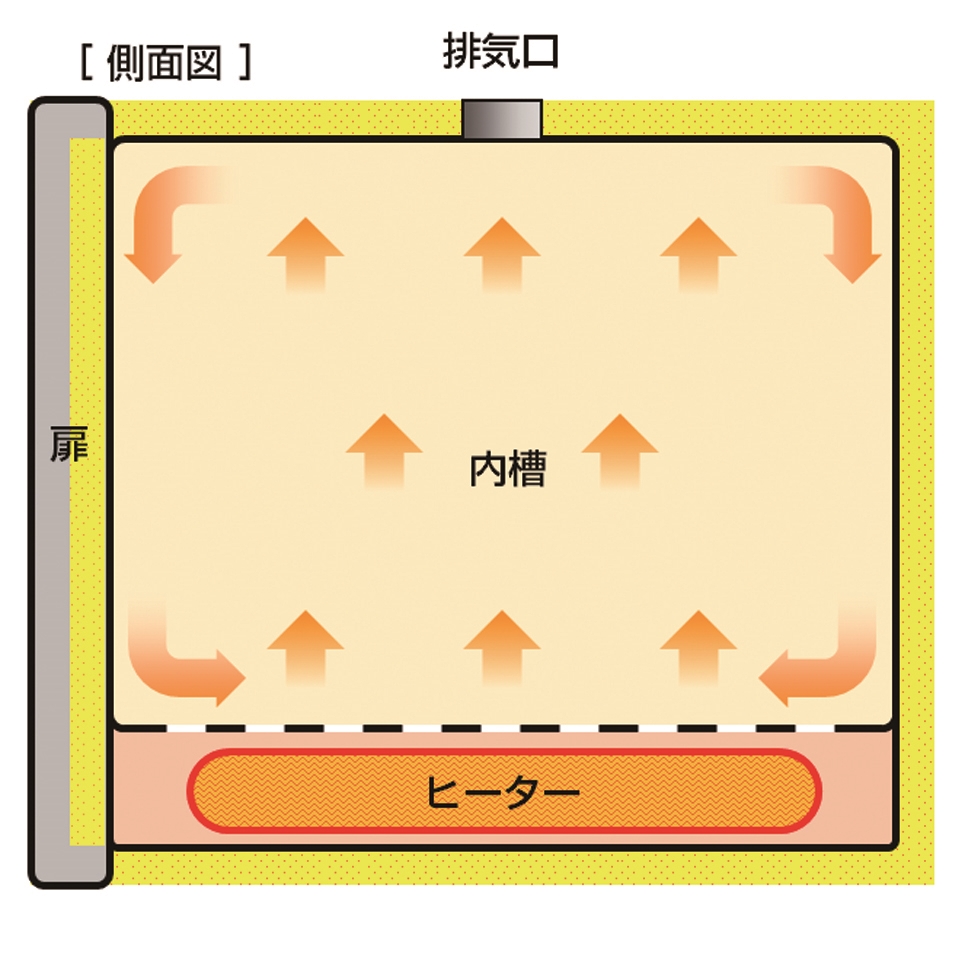

Natural convection hot air sterilizer with program function, easy to set

Features

Quick, safe and reliable sterilization function.

Easy operation, available for fixed temp., program, quick auto stop, auto stop and program auto start functions.

Use special function menu keys and up/down keys to realize digital setting. with repeat function, 6 patterns program operation.

Use submenu keys to operate calibration offset, power failure compensation and key locking.

Self-diagnosis circuit (abnormal temp. sensing, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, ELB to prevent overcurrent, key lock, etc.

Specifications

Item Code

292248

Model

SI402

Circulation method

Natural convection (for laboratory use only)

Operating temp. range

Room temp. +5~260°C

Temp. adjustment accuracy

JTM K05 ±1°C (at 260°C)

Temp. distribution accuracy

JTM K05 ±6°C (at 260°C)

Max. temp. reaching time

Approx. 70min.

Interior / Exterior

Stainless steel plate / chrome-free electrogalvanized steel sheet with chemical proofing coating

Heater

Wire type, 1.2kW

Air exhaust port

I.D. 30mm×2 (top)

Temp. control

PID control / VS6 type

Temp. setting

Use special function menu key and up/down key to set

Temp. display

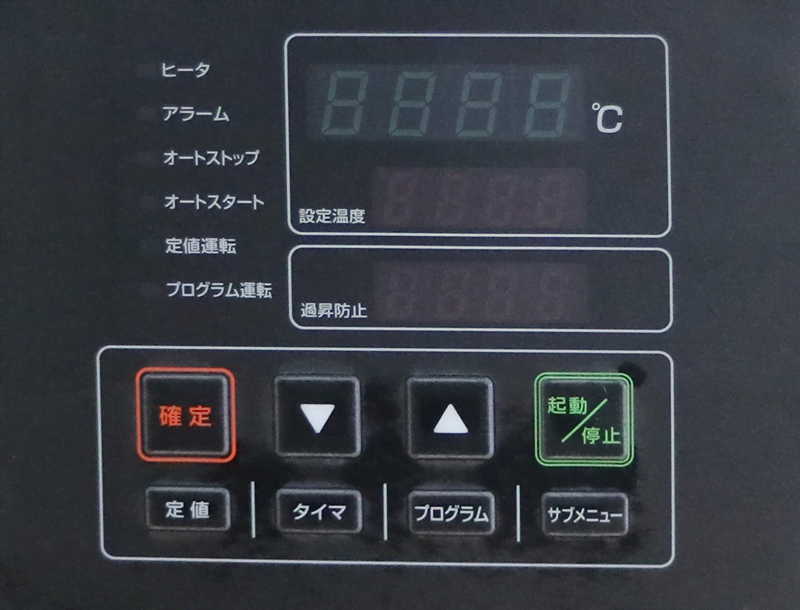

Measured temp. display: Green 4-digit LED digital display,Setting temp. display: Red 4-digit LED digital display

Timer

0 min-99 hr 59 min and 100 hr-999 hr 50 min (Attached with timing wait function)

Operation function

Fixed temp. operation, Auto start, Quick auto stop, Program auto-start operation

Program mode

Program operation 6 patterns (30 steps×1, 15 steps×2, 10 steps×3)

Additional function

Calibration offset, Key lock, Power outage compensation

Sensor

K thermocouple (Temp. controller and overheat protector)

Safety device

Self-diagnosis circuit (Abnormal temp. sensing, Heater disconnection, Auto overheat prevention, SSR short circuit)

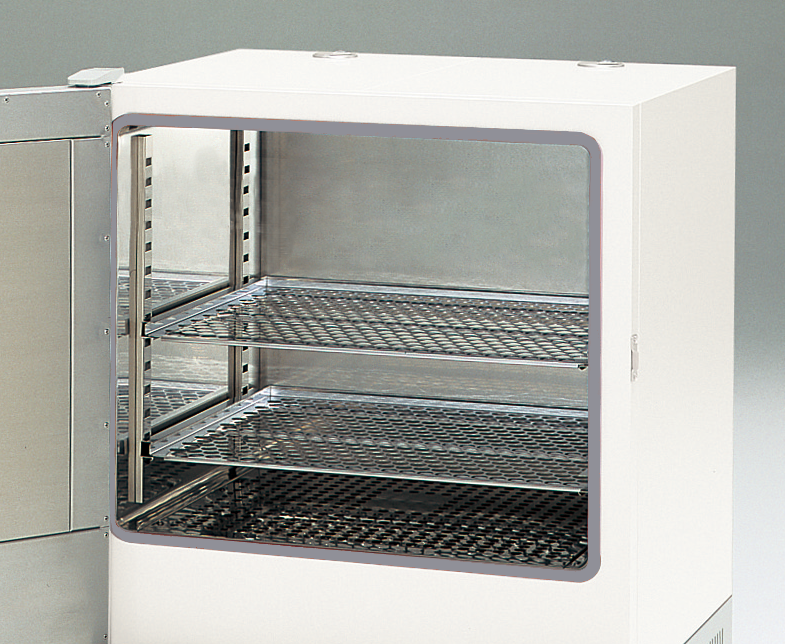

Shelf plate with standard load

Approx. 15 kg/pc.

Shelf support step number / pitch

10 steps / 30mm

Shelf plate material

Stainless punching metal

Shelf plate / bracket

2pcs./4pcs.

Optional

Stand/ONS60 ,Stacking support/ODK82, Shelf plate (1 plate with 2 brackets) etc.

Internal dimensions（W×D×H mm）

450×430×400mm

External dimensions（W×D×H mm）

550×540×777mm

Remarks(dimensions)

77L

Power Source

AC115/AC220V 50/60Hz, Single phase

Weight

42kg

Catalog

Dry Sterilizer

Optional Items

Seismic isolation rubber

External communication adaptor (RS485-USB)(OA017)

Stand(ONS60)

Stacking support(ODK82)

Stainless punching metal shelf(O212095)

External communication terminal (RS485)(OA029)

External alarm output terminal(OA030)

Time-up output terminal(OA031)

Temperature output terminal (4 - 20mA)(OA032)

Independent overheat protector(OA033)

Cable port (25 mm I.D.)(ODK32)

Cable port (50 mm I.D.)(ODK34)
