Spray Dryer

Spray Dryer(ADL311S-A)

Item Code：212738

Model：ADL311S-A

Power Source：AC200-AC240V 16-18A Single phase

Origin：Japan

Product Summary

Easily micronize liquid samples with a spray dryer (When organic solvent is used, a GAS410 organic solvent recovery unit is required.)

Features

Easy setup, easy operation

Suitable for heat sensitive samples. High heat is notdirectly applied to dry fine powder

Obtain contaminant free fine powder which is not oxidized and contains minimal moisture

Direct drying of solution or solution liquid into fine powder. No pre- or post processes such as filtration separation, or pulverization required

Safe and explosion free working is guaranteed in combination with GAS410 due to oxygen & pressure control

Organic solvents are recovered in a closed loop to protect the environment to enable minimized pollution

Easy operation with one-touch detachable mechanism for drying chamber and cyclone

An arm jack is equipped as standard for easy installation and removal of glassware attachments

A service outlet (max.2A) and a sample stand are equipped as standard for connecting a magnetic mixer for stirring suspended liquid samples

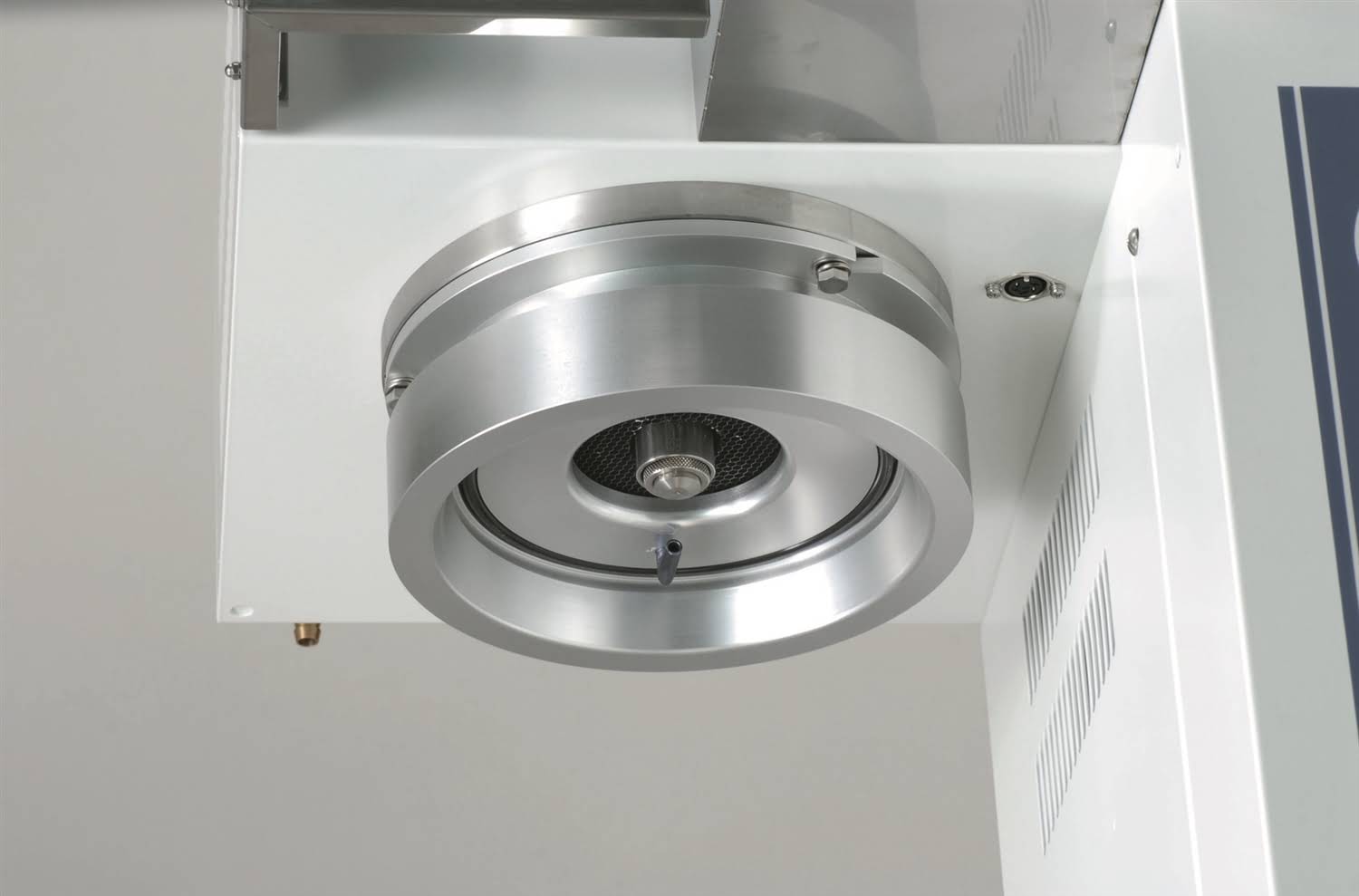

Unique peristaltic pump, nozzle cooling mechanism pulse jet mechanism and a nozzle knocker for stable spray drying

ADL311SA is highly mobile on wheels, or usable with shorter height as a bench top unit by removing the movable caster

Specifications

Item Code

212738

Model

ADL311S-A

Moisture evaporation capacity

MAX 1300ML/h

Temp. setting range

40~220°C (inlet temperature), 0 ~60°C (outlet temperature)

Temperature adjusting accuracy

±1°C

Drying air amount adjusting range

0~ 0.7m3/min

Spray air pressure adjusting range

0 ~0.3MPa

Liquid sending pump flow rate range

0 ~26 mL/min

Spray air line washing function

Spraying at the nozzle tip, manual pulse jet system

External output

Inlet temperature, outlet temperature, temperature outlet (4-20 mA)

Temperature adjusting device

PID digital temperature adjusting device

Touch panel

Blower, heater, liquid sending pump, pulse jet switch, error display

Control select switch

Inlet temperature, outlet temperature control switch(outlet temperature control is conditional)

Temperature sensor

K-thermocouple

Heater

2.0kW (at 200V) to 2.88kW (at 240V)

Liquid sending

Fixed amount peristaltic pump

Spraying air pump

For water soluble samples air compressor is used (sold separately). For organic solvent samples the integrated compressor in GAS410 is used (No separate air compressor required)

Service outlet

For stirrer: AC100V, MAX. 2A

Suction blower

Bypass blower

Filter

Suction filter, Exhaust filter

Recovery of solvent

Solvent recovery unit GAS410 (Sold separately) is used

Spray nozzle cooling mechanism

Connector: nipple×2, O.D.: ø10.5mm

Spray air connection diameter

Nipple diameter: ø7mm

Spray air pressure

Bourdon tube: 0.3 MPa

Exhaust connecting diameter

ø50mm

Safety function

Inlet / outlet temperature overheat, sample feed reverse rotation mechanism, over current electric leakage breaker, nozzle connection error

External dimensions（W×D×H mm）

580×420×1125mm

Power Source

AC200-AC240V 16-18A Single phase

Weight

80kg

Accessories

Silicon tubes (with a stopper)×3, Exhaust duct (with one hose band)×1, Outlet temperature sensor, Spray air tube, Sample box, Static electricity removal earth, "Tetron" braided tube hose 5m (with two hose bands)
