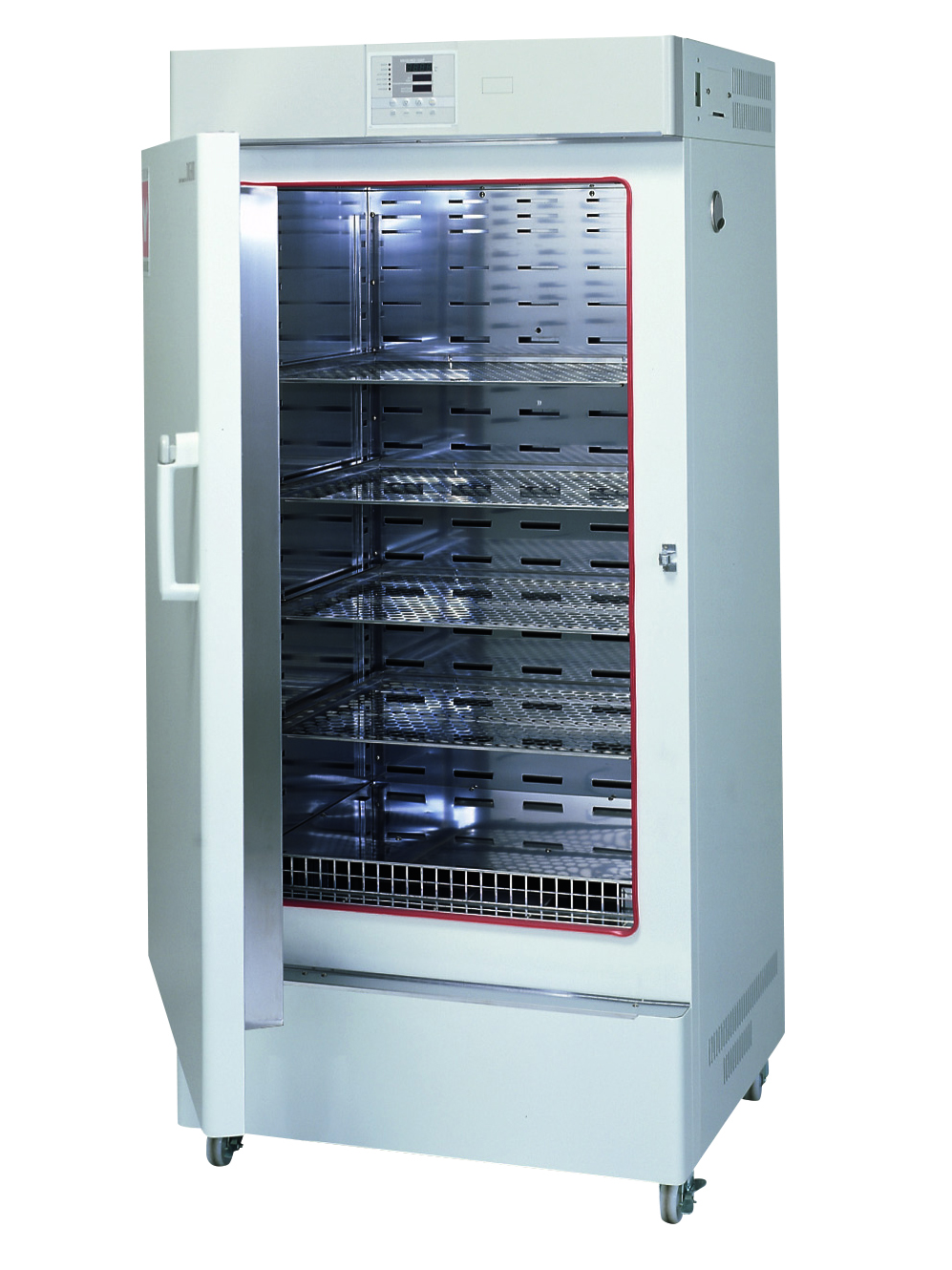

Industrial Forced Convection Oven (Silicorn/Fluoro-rubber Gasket)

Industrial Forced Convection Oven (Silicorn/Fluoro-rubber Gasket)(DKG811)

Item Code：212898

Model：DKG811

Power Source：AC200~220V 18.5~20.5A Single-phase

Origin：Japan

Product Summary

Faster heat-up and cool-down cycles improve productivity with easy operation.

Features

Heat-up and cool-down times have been reduced by over 50% compared with previous models, significantly improving operational efficiency.

A front-mounted manual adjustment valve enables synchronized intake and exhaust, accelerating cool-down.

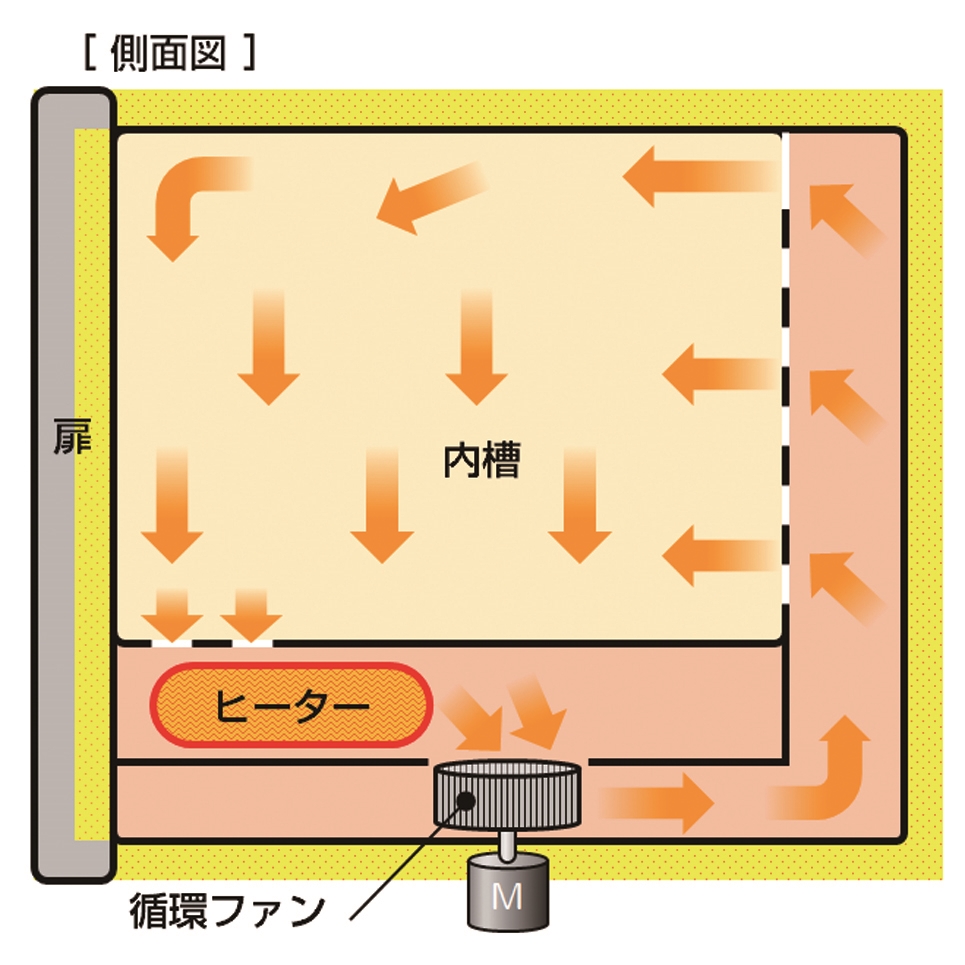

Horizontal airflow delivers high-precision temperature control, even under load.

The horizontal air flow system ideal for processing samples in a magazine rack or a lot of samples realizes high precision temperature performance even at loaded condition.

The door gasket is made of fluororubber, providing a siliconefree design. (DKG611V/811V)

Designed for AC200-220V power supply.

Specifications

Item Code

212898

Model

DKG811

Method

Forced convection

Operating temperature range

Room temp.+30~260°C

Temp. adjustment accuracy

±0.5℃

Temp. distribution accuracy

±2℃（at 200℃）、±2.5℃（at 260℃）

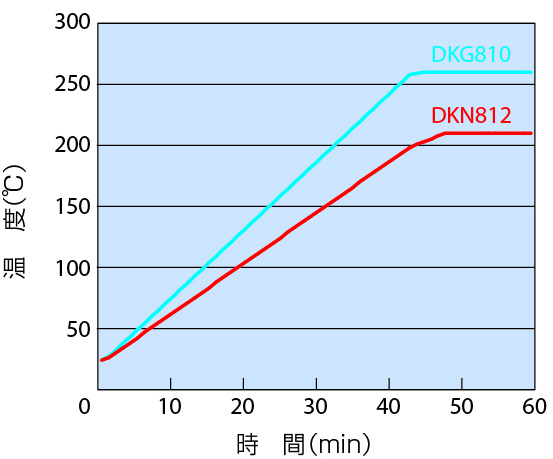

Time to attain max. temp.

Within 50min. from 25°C ->260°C

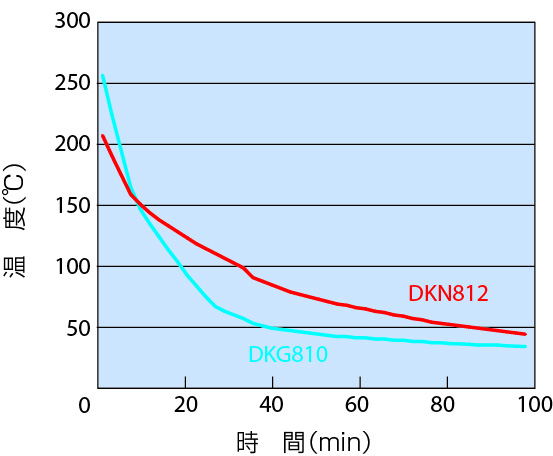

Temp. decrease time

About 40min. from 260°C ->50°C

Air supply/exhaust damper

Front operation/manual damper Air supply pipe/exhaust pipe at the rear NSSC180 With exhaust duct

Interior/exterior

Stainless steel plate/chrome free electro galvanized steel plate Chemical proof baking finish

Heater and heat insulator

SUS pipe heater & glass wool

Heater capacity

200 to 220V 3.6 to 4.36kW

Blower fan

Sirocco fan×2

Fan motor

Condenser type motor × 2pcs

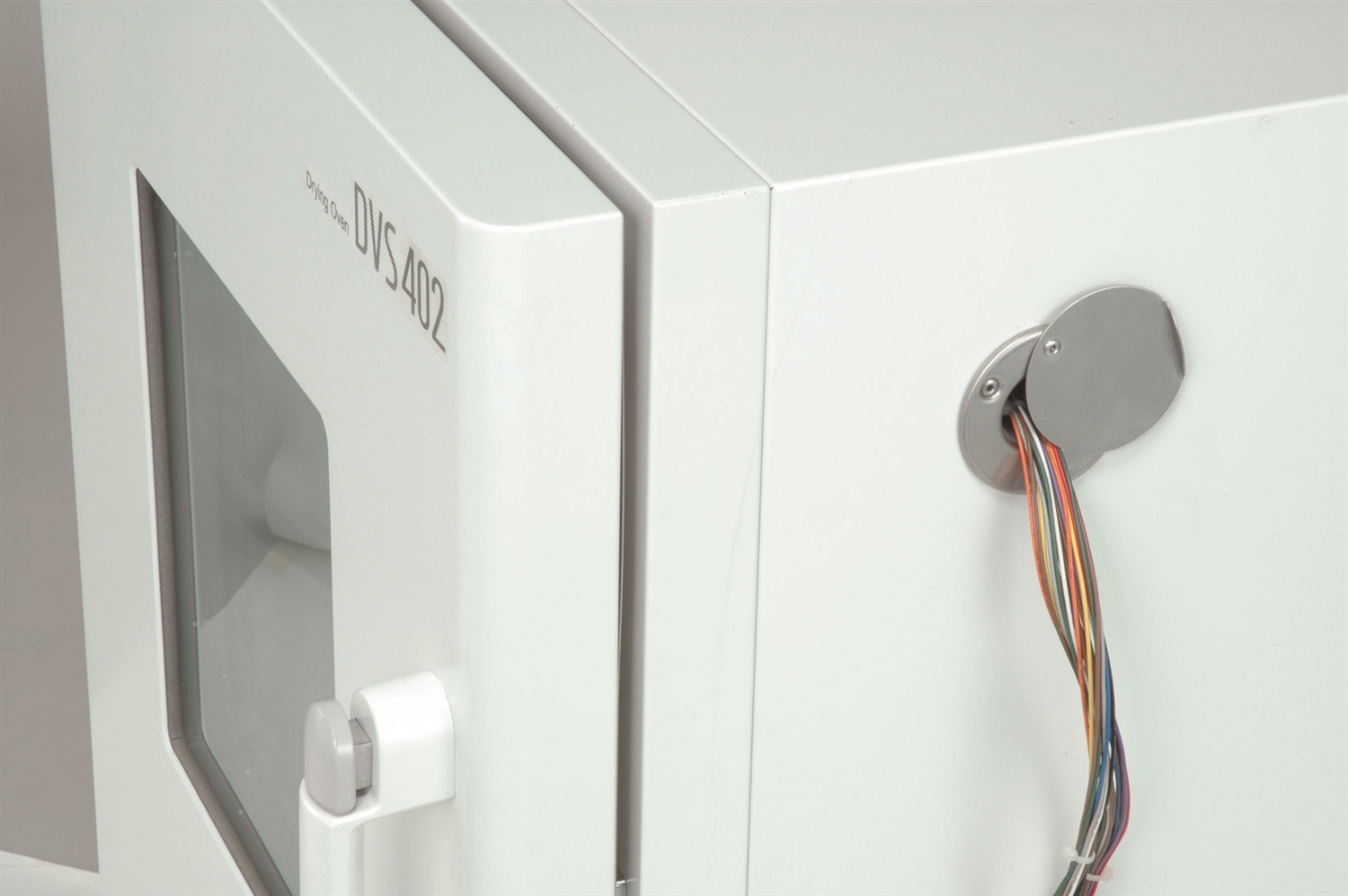

Cable port

I.D.: 30mm One at the right side of the main body

Door packing

Silicon rubber

Air supply port

Bottom of heater room (Open/Close with a manual damper)

Damper control

Linked air supply / Exhaust with manual knob on the front of the main body

Exhaust port

Upper part of rear of the main body: φ80 (Open / Close with a manual damper)

Heater control

SSR control

Sensor

K-thermocouple (for temp. adjustment, Indivisual overheating prevesion)

Safety unit

Self diagnostic function (Temperature sensor error, Heater disconnection, SSR short-circuit, Automatic overheat prevention function), Key lock,

Safety unit

Program lock, Overheat preventive device, Over current electric leakage breaker, Door switch, Temperature fuse, External alarm terminal

Internal dimensions（W×D×H mm）

600×500×1000mm

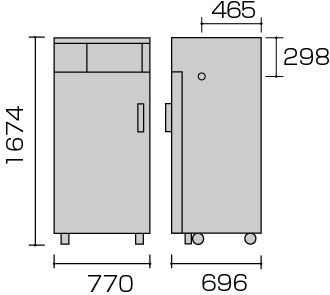

External dimensions（W×D×H mm）

770×696×1674mm

Withstand load of shelf

15 kg / pc.

Shelf support step number

15 steps

Shelf support pitch

60mm

Accessories Shelf

4 pcs.

Accessories Shelf support

8 pcs.

Power Source

AC200~220V 18.5~20.5A Single-phase

Weight

155kg

Internal capacity

300L

Catalog

DKG811

Optional Items

Stainless punching metal shelf

Cable port(ODK22-1)

Cable port(ODK23-1)

Stand(ON62)

Temperature output terminal (4-20 mA)(ODK24-1)

External communication function (RS485)(ODK25-1)

External communication adapter(O281563)

Independent overheat prevention device(ODK27-1)

Automatic damper(for DKG)
