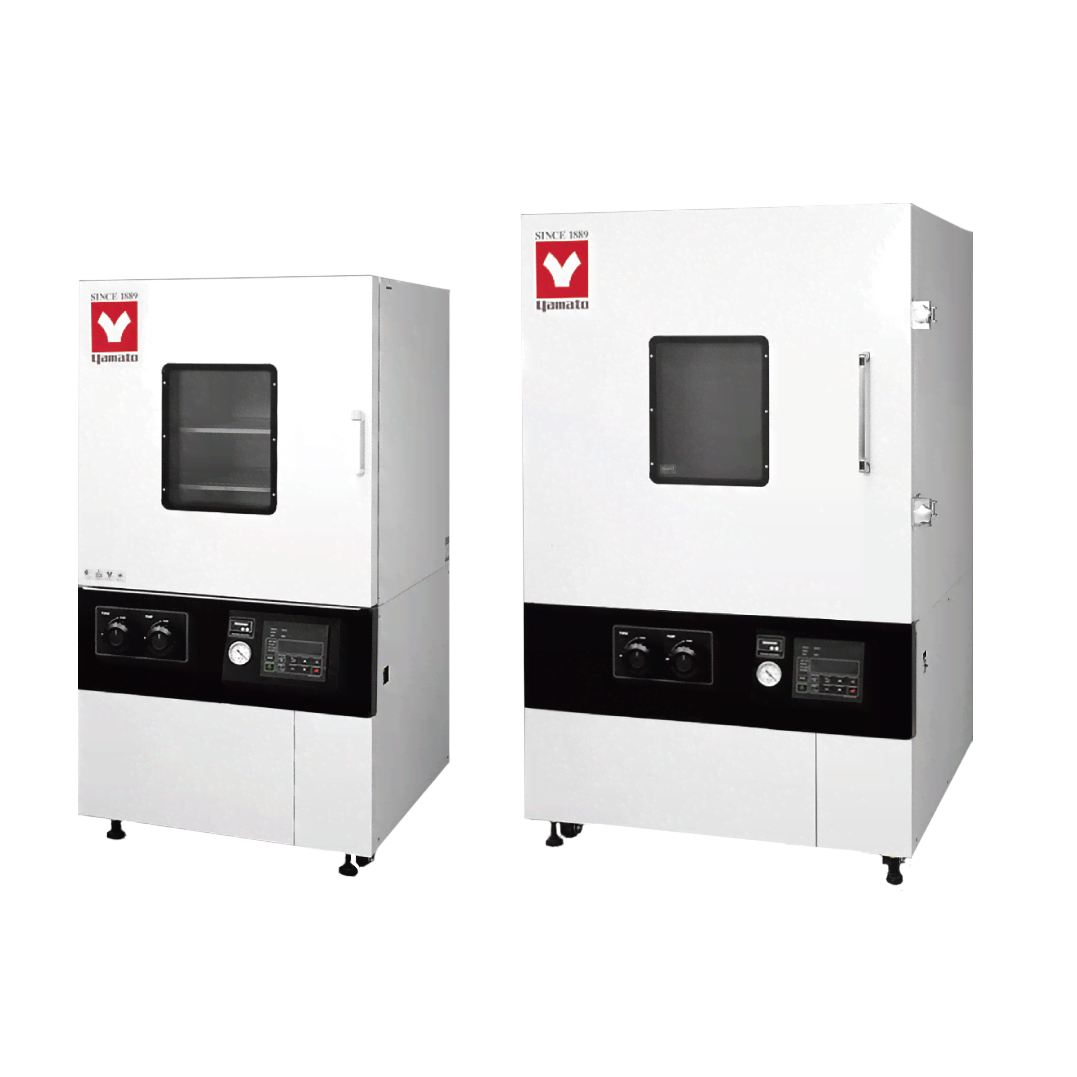

Vacuum drying oven

Vacuum drying oven(DP43C)

Item Code：

Model：DP43C

Power Source：AC220V 10.5A

Origin：China

Product Summary

Vacuum drying ovens designed for various applications of vacuum drying.

Features

Easy operation, available for fixed temp., program, quick auto stop, auto stop and auto start operations.

Digital setting through special function menu keys and ▲/▼ keys. 6 modes with a total of 90 segments program controller.

Overheating protection, deviation correction and key locking through submenu keys.

Equipped with self-diagnostic circuit (temperature sensor anomaly, heater disconnection protection, automatic overheating prevention, SSR short-circuit protection), overheating prevention, overcurrent leakage protection, key lock and other safety functions.

For safety, a protective panel made of resin is installed on the viewing window.

Specifications

Model

DP43C

System

Pressure reduction · wall heating

Operating temperature range

40~200℃

pressure range

101～0.1kPa（760～1Torr）

Max. temp. reaching time

Approx. 80 min

Temp. adjustment accuracy

±1.0℃（at 200℃)

Interior material

Stainless steel plate

Exterior material

Cold rolled steel plate with chemical proofing coating

Insulating material

Glass fiber

Heating method

Direct heating of pressure vessel walls

Heating power

0.68kW 1.05kW 2.25kW 3.15kW 3.96kW 14.4kW

Viewing window

Tempered glass + safety protection resin panel

Vacuum gauge

Pointer type, -100～0 KPa

Vacuum pump installation space (W ×D× H mm)

320×600×540

Controllers Temp. control method

3-stage PID

Temperature setting method

Digital setting through special function menu keys and up/down keys

Setting temp. display

Red 4-digit LED digital display

Timer

1 min ~ 99 h 59 min and 100~999 h 50 min (including timer waiting function)

Operation functions

Fixed temp. operation, auto start, auto stop, program operation

Program mode

Program operation 6modes with a total of 90 segments (30 segments×1, 15 segments×2, 10 segments×3)

Additional functions

Deviation correction, key lock, power failure compensation

Heater circuit control

SSR drive

Sensors

K thermocouple (temp. controller and overheating protection)

Safety device

Self-diagnostic circuit (temperature sensor anomaly, heater disconnection protection, automatic overheating preventer, SSR short-circuit), overheating preventer, overcurrent leakage protection, key lock functions

Internal dimensions(W ×D× H mm)

450×450×450

External dimensions (W ×D× H mm)

670×670×1524

Internal capacity

91L

Shelf layer / spacing

4 layers (fixed)/105mm

Exhaust vent

25KF

Air intake

Rc3/8
